        Products




        Automatic Weighing and Dosing System  Main Material















        Automatic Weighing and Dosing System- Main Material

Automatically weigh major material (powder, particle and liquid) according to formula management. Process: Conveying the material--> weighing--> discharging upon receive signal from main machine (like mixer). Repeat the operation.





        Conveyor type:







        Vacuum



    Material (Powder/ Particle) is handled by vacuum.  Weight stability is lower comparing the screw conveyor.






         Screw




        Material (Powder/ Particle) is  handled by screw. Higher weight stability.

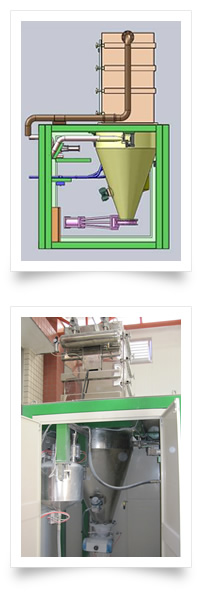

        Vacuum conveyor

Screw feeder




        Material? (Powder/ Particle) is handled by vacuum  conveying? plus screw feeding.  Higher? weight? stability.








         Gear driven pump




        Material (Liquid) is handled by  gear driven pump. Higher weight stability.













        Vacuum conveyor / Screw conveyor:






    Vacuum conveyor Screw feeder
    Screw (Easy type)
    Screw (Standard type)
    Vacuum




     Space     required
    7M in height required from discharge port
    7~12M in height required from discharge port according to the size of mixer and  ready-bin.
    7~20M in height required from discharge port according to the size of mixer and  ready-bin.
    3~5M in height required from discharge port




     Weight   range
    500G minimum.
    Main: 10~200KG Sub: 3~10KG




     Weight   accuracy
    ±0.2~0.5% F.S.
    ±5‰~1% F.S.




    ?Dosing

        ?cycle time

    1KG/ ?Sec
    1KG/  10~30 Sec
              (According to accuracy equired)




    ?Maintain/

        ?Repair


        Clean the screw/ barrel.


        Clean the filter and barrel? Clean the screw/ barrel.
